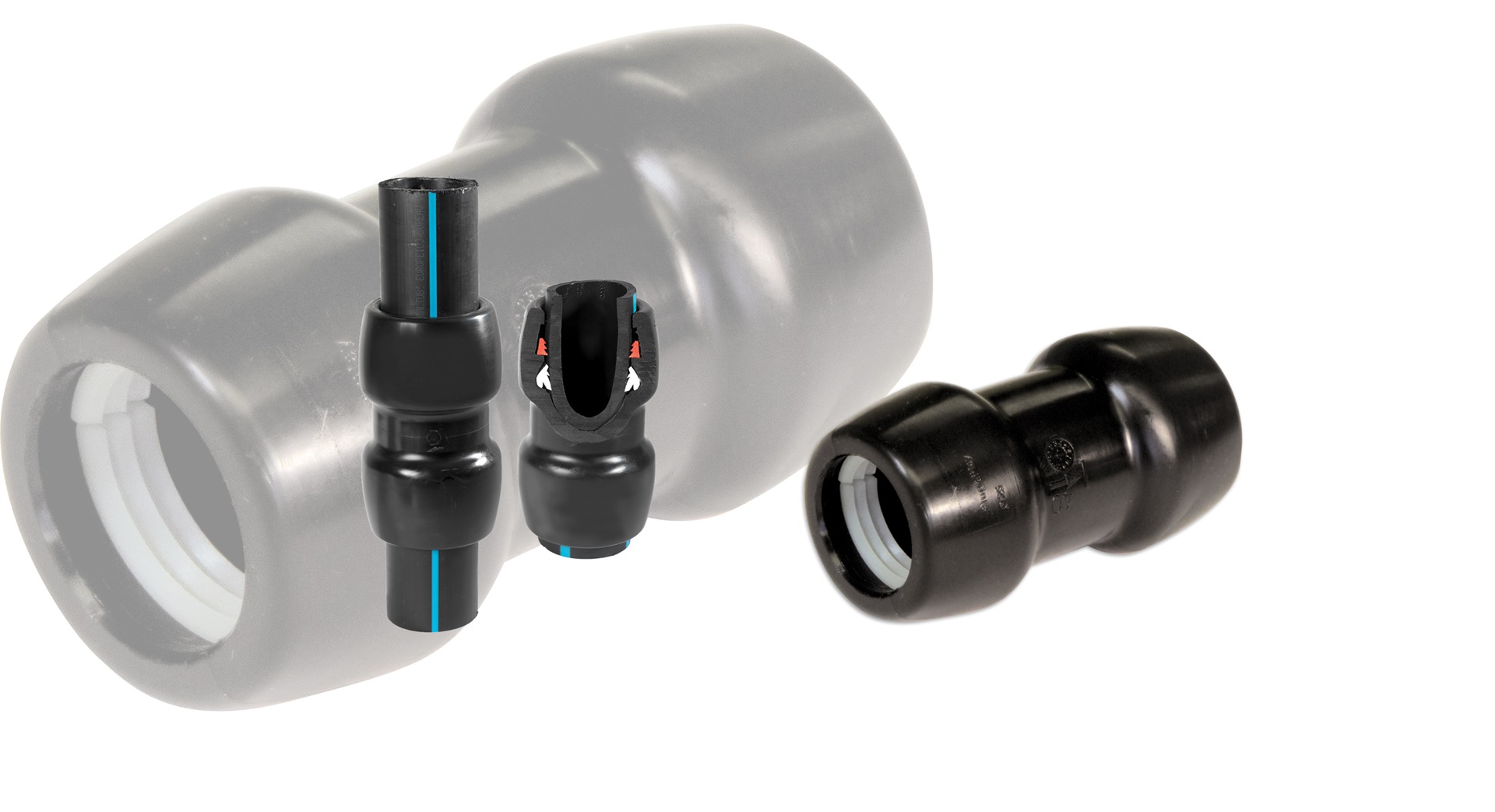

Plug & Play® push-fit couplings
Plug & Play® is a new coupling in our large product range. This coupling is suitable for PE pipes, class SDR 11.17 and 17.6 with a double sealing ring and a specially designed grip ring.
Simple, fast and reliable installation with Plug & Play®.
You can avoid welding PE pipes and the use of mechanical couplings. Available in sizes 20 mm to 315 mm for (drinking)water and wastewater.
Features:
- Suitable for PE pipes
- Fast, simple and reliable
- Double sealing ring
- Specially designed grip ring
- Avoid welding and tightening bolts
- Available from 20 to 315 mm
- DVGW and ÖVGW certified

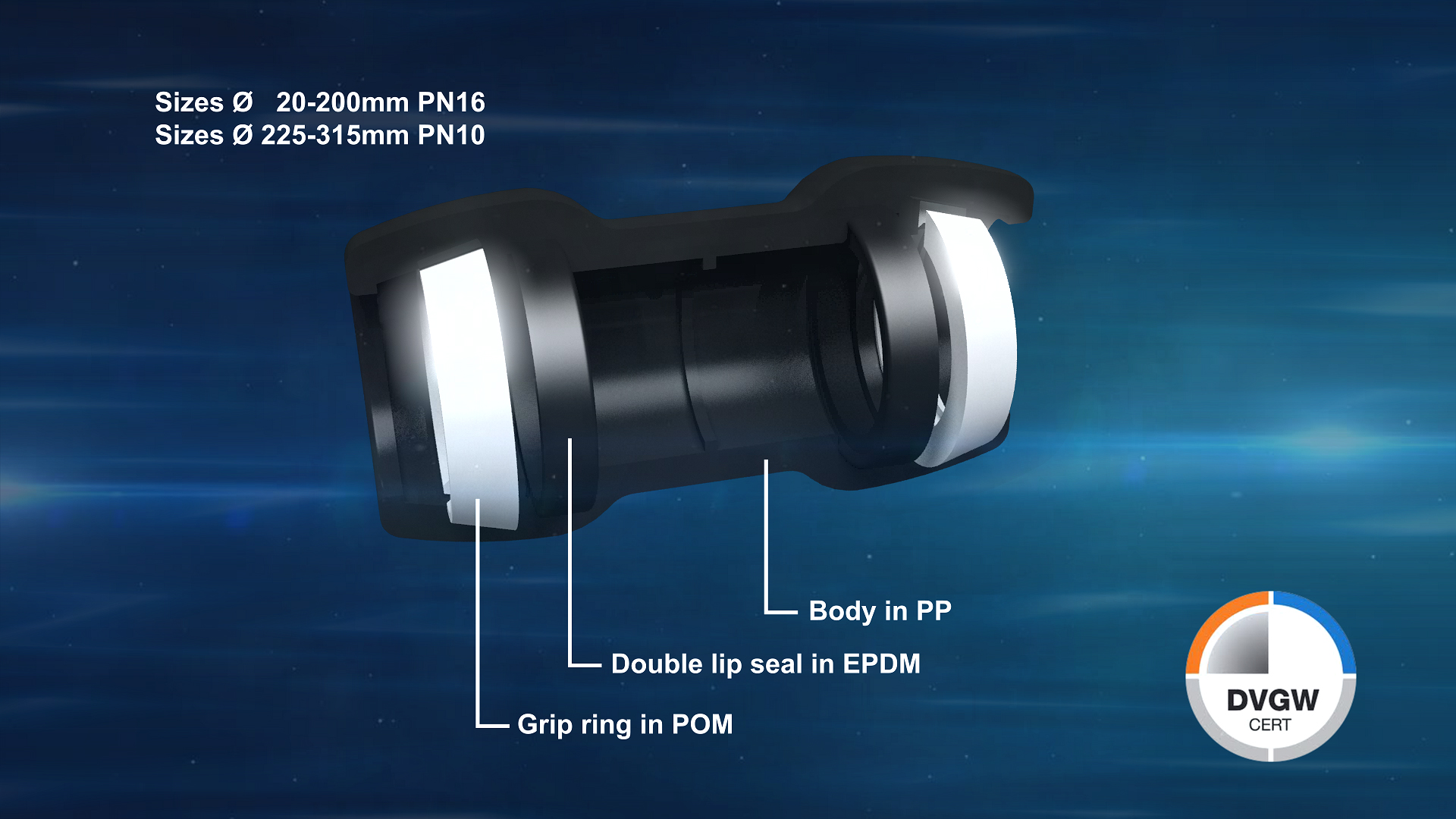

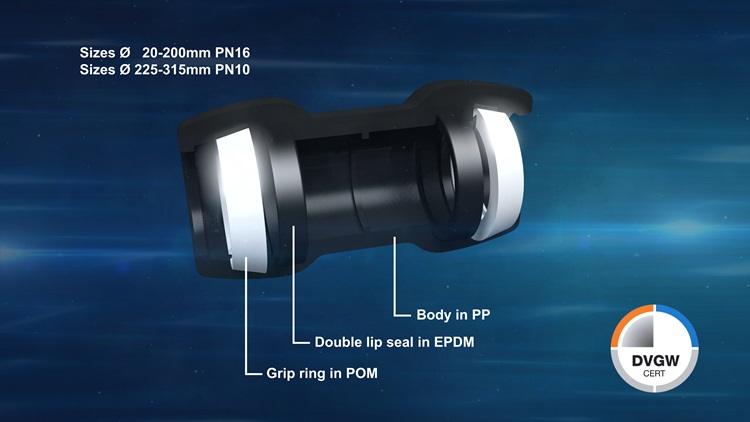

Parts and materials:
Optimal tensile strength is achieved by the tensile resistant white POM ring even in case of water hammer. This ring ensures a perfect grip on the pipe. Assembly is very easy. First chamfer the pipe and then insert the pipe until the stop ring. Due to water pressure the pipe will slide backwards, approximately 10 mm from the end stop. The tensile connection has now been realized. For larger sizes there is a special AVK mounting bracket.
Different versions are also available, such as 90 ° bend, 45 ° bend, end cap, coupling reduction, flange adapter, T-piece and T-piece reduction. Please contact our sales department for further information.
