A wealth of gate valve end connections

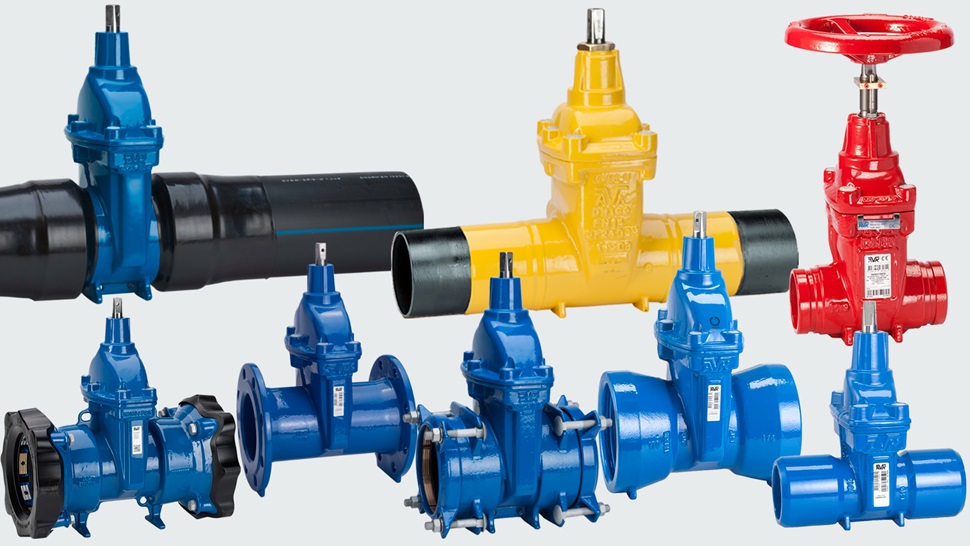

AVK offers gate valves with a wide choice of end connection types ranging from welding ends for PE and steel pipes, universal and dedicated tensile coupling ends, spigot and socket ends, grooved ends, and of course flanged ends in a number of face-to-face dimensions.

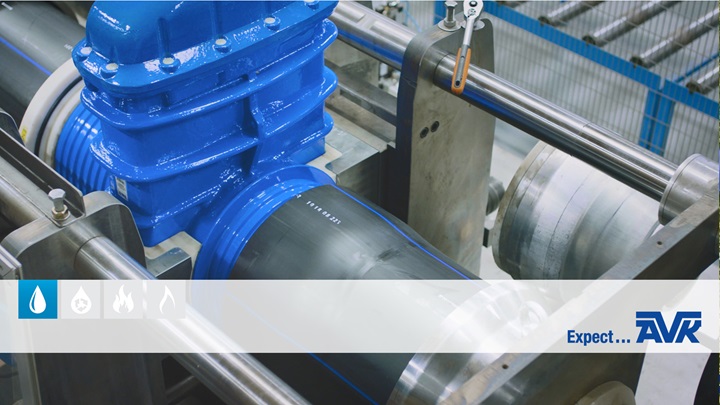

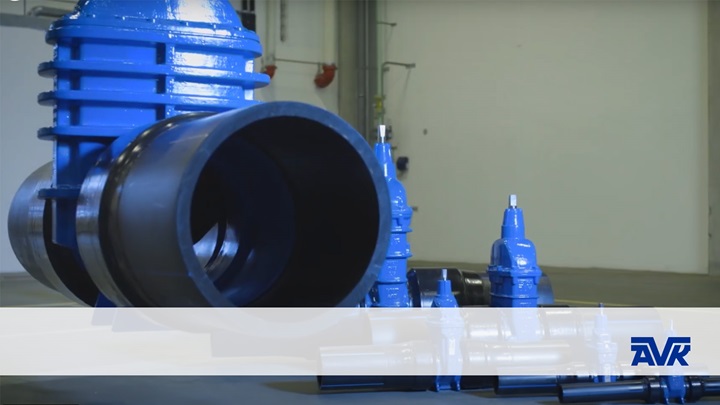

Gate valves with PE pipe ends for direct welding into PE pipes
The boltless, full bore PE end connection is fully tensile resistant and designed to meet all the criteria specified in DVGW G5600-1. A piece of standard PE pipe is pressed directly onto the grooved valve end. The grooves combined with a sleeve around the valve/pipe connection ensure that the PE pipe material is firmly secured and that the connection remains tight and tensile during the entire service life of the pipeline. The connection is sealed with a shrink hose to provide corrosion protection. The full and straight bore ensures minimum pressure loss and makes under pressure drilling possible. Variants are available for water supply, gas supply, fire protection and industrial applications.
Gate valves with tensile coupling ends for maximum flexibility
AVK also offers tensile couplings with built-in valves, making it easy to turn off the water in case of repair or replacement. The Supa Maxi™ gate valve with tensile universal coupling ends make it possible to install the valve in all types of pipes, and it will often be used to connect an old cast iron pipe with a new PE pipe. The coupling ends are designed with a flexible bracket offering maximum tightness up to PN16 in all dimensions, and which does not require re-tightening of the bolts. The valve is very easy to install due to a big insertion depth tolerance, deflection of ± 4° and permanent end protection caps. The Supa Plus™ gate valve is dedicated to PE and uPVC pipes. The compression type gasket allows for a deflection of ± 3.5° and makes it easy to insert the pipe end, even in the large dimensions.
Flanged gate valves to all major standards
AVK offers flanged gate valves to practically all standards, and with face-to-face dimensions according to EN 558 table 2 basic series 14 (short, DIN F4) and series 15 (long, DIN F5) as well as to GOST, SABS, AWWA, AS and BS. Furthermore, we offer gate valves with flange X PE end and flange X spigot end as well as combi-crosses with 3 and 4 outlets. Especially our flanged gate valves are available with several material configurations making them suitable for a wealth of applications within our five segments; water supply, gas supply, wastewater treatment, fire protection and industry.
Gate valves with spigot ends for repair in old pipelines
When a valve is removed in an old pipeline, usually by cutting the pipes on both sides of the valve, the ends of the pipes may be offset and valves with standard face-to-face dimensions might not fit in the gap. A spigot end valve + a flange adaptor or a coupling with deflection ability is a flexible solution. We offer them with short or long spigots for cast iron pipes as well as short spigots for AC pipes. Check out our range with spigot ends and with flange x spigot end.
Gate valves with socket ends as alternatives to flanged ends
Socket, just like the gate valves with coupling ends, save costs comparing to flanged connections, when taking the cost of valves, flanges, bolts and gaskets as well as the mounting time into account. We offer gate valves with Euro sockets for uPVC pipes, Tyton sockets for cast iron pipes, and gate valves with the flexible grooved end system for steel pipes used in fire protection and irrigation system. Furthermore, gate valves with BLS spigot/socket ends suitable for “Buderus” pipes and standard cast iron pipes when using a tensile resistant clamp allowing for +/- 3.5 degree deflection of the pipes according to EN 545.
Gate valves with steel spigot ends for welding into low pressure gas steel pipes
AVK offers gate valves with steel spigot ends in two different face-to-face dimensions, they have both easy access to the welding ends and a low weight for easy handling on site. Also variants with steel spigot end x PE end are available. The valves are made of cast steel GS-C 25N with welding ends according to DIN 3239 part 1. The welding process is performed by certified welders in-house at AVK.
