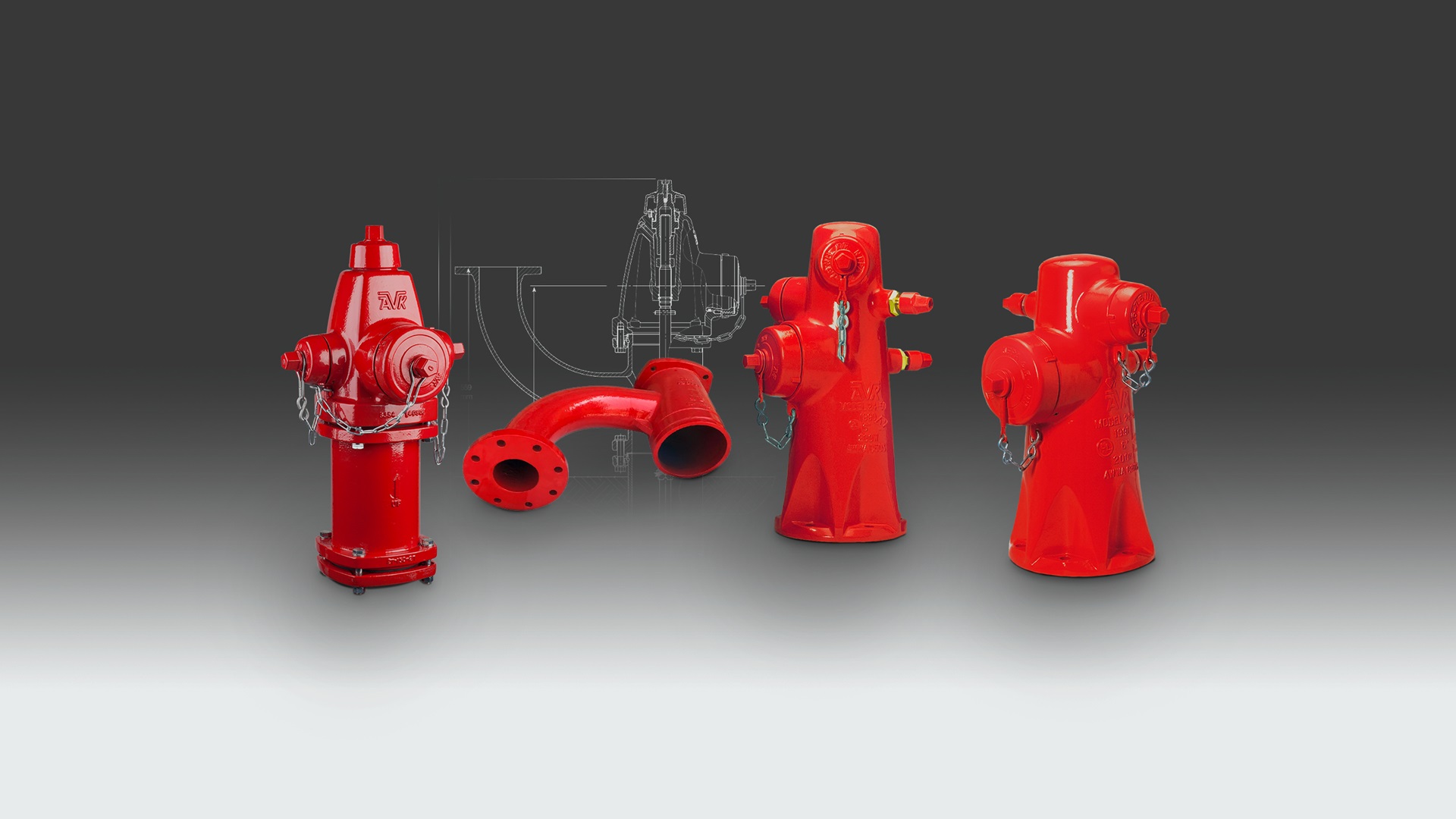

Dry barrel and wet barrel hydrants
UL listed and FM approved
We always aim at the highest quality, and most of our products for fire protection applications are approved according to both UL and FM. We have thus committed to meet the standards and requirements set by these well-recognized global organisations and to continuously test and control our product ranges accordingly.
Our UL listed and FM approved products include dry and wet barrel hydrants as well as butterfly valves, NRS gate valves, OS&Y gate valves, post indicators, wall post indicators and swing check valves.

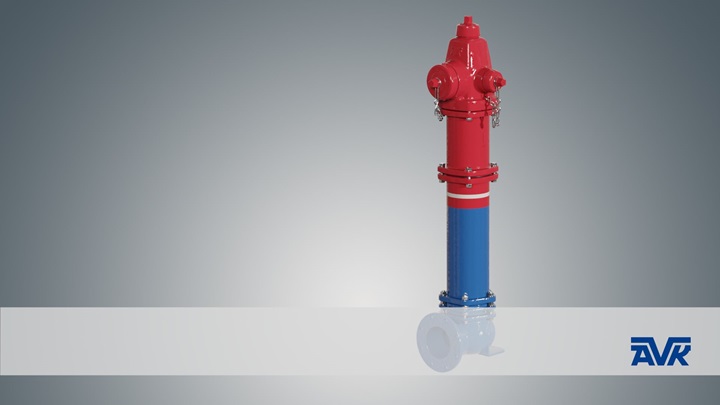

Dry barrel fire hydrants
Dry barrel fire hydrants are primarily designed for areas with frost, where the water main is located below the ground frost zone. AVK dry barrel hydrants are UL listed and FM approved for fire protection applications and they meet or exceed AWWA C-502. They are rated for a working pressure of 17.2 bar (250 PSI), and they are designed for high performance, easy repair and minimum end user costs for labor and inventory.
High performance and easy repair
AVK dry barrel hydrants are designed with a breakable flange and a stem rod coupling which prevent leaking and enable easy repair at traffic knock down. The hydrant’s main valve has a ductile iron core which is fully encapsulated in EPDM rubber. The nozzle section can be rotated 360 degrees. The upper section of the hydrant is repairable under pressure.
The dry barrel hydrant has two drain outlets located just above the water main level. The main valve disc is designed with the purpose of flushing the drain channels for soil and other impurities during opening, as these impurities could lead to damage of the main valve disc. Furthermore, the barrel will drain the water through the drain holes in the base when the hydrant is closed after service.
Click here to see our rang of AVK dry barrel fire hydrants
See animation: AVK dry barrel fire hydrant
See video: How to install a traffic repair kit on an AVK dry barrel hydrant
See video: How to install an extension kit on an AVK dry barrel hydrant
Wet barrel fire hydrants
Wet barrel fire hydrants are designed for non-frost areas. AVK wet barrel hydrants are easy to maintain and are rated for a working pressure of 13.7 bar (200 PSI). They are UL listed and FM approved, and meet or exceed the requirements of AWWA C503.
AVK's wet barrel hydrant is designed with the shut-off device directly at the outflow nozzle for hose or pumper connection. This means that the hydrant is constantly filled with water and thus under pressure. The hydrant is mounted directly on the water main, giving full water pressure instantaneously when needed. AVK wet barrel hydrants are available with a breakable flange to enable easy repair at traffic knock down.
