Steam conversion station TECpress

The TECpress steam conversion station is a combination of pressure, quantity and temperature control. The subcritical controlled pressure release is integrated with the proven downstream temperature control systems into a complete solution. Due to different design versions, various applications such as turbine bypass stations or district heat extraction can be realized.

CHARACTERISTICS

  • Angle-type body
  • Subcritical pressure regulation in all load ranges
  • Multiple stage pressure reduction with regulated restrictors
  • Homogenisation of the hot steam flow using downstream perforated discs
  • Pressure reduction with downstream steam cooling using steam booster nozzle or desuperheater
  • Forged parts
  • Manufacturer declaration SIL 2

Click to download product sheet

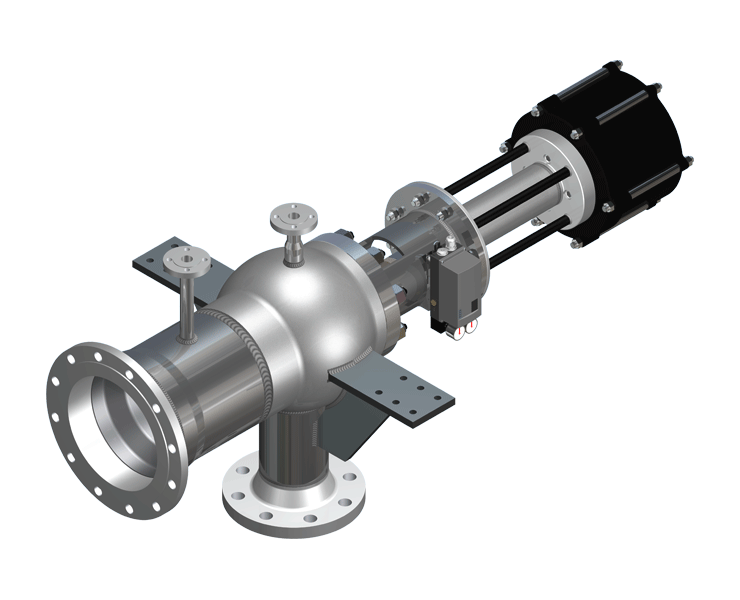

TECpress steam conversion station
